Basic Engineering
Engineering the calculations and drawings required to validate the design
001
Technical validation
Building the technical foundation for design validation
002
Engineering scope

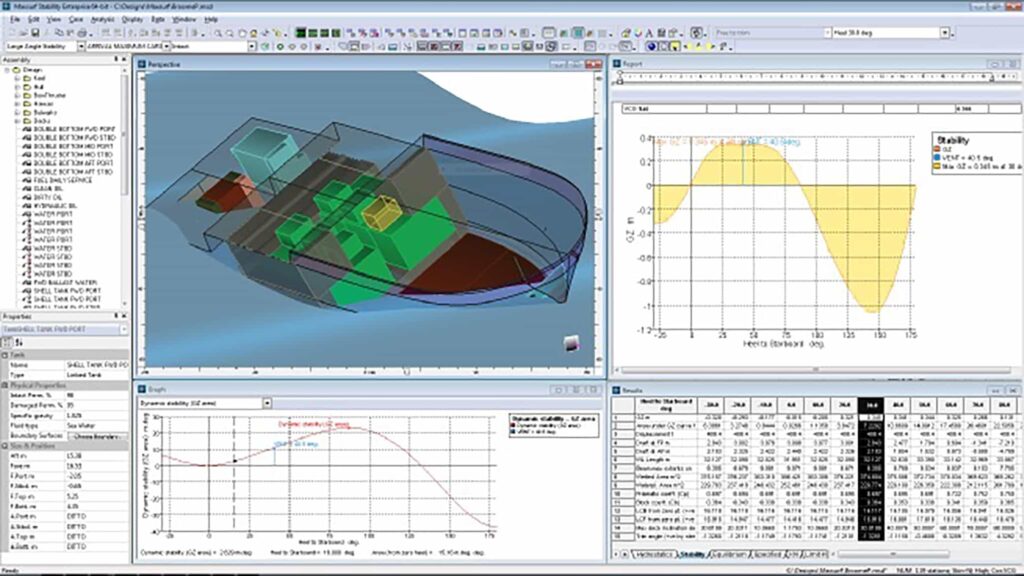

NAVAL ARCHITECTURE
We can be your partner for a full range of naval architecture during the design process, from first preliminary approaches at concept stage, through basic and detail design, until the last phase of the project in the production process.
- Naval Architecture calculations
- Weight calculation
- Intact and damage stability
- Hull optimization
- Resistance & propulsion
- Scantling and structure design
- Tank plan & Capacities
- Rudder, propeller and ER design
003
Technical approvals
CLIENT/ CLASS APPROVAL DRAWINGS
We can assist your project making client / class approval drawings for multiple aspects of your ship. List below mentions some common among others.
- Equipment plans
- Insert plans / outfitting items
- Fire integrity plan
- Construction plans
- Appendage arrangement
- Watertight integrity plan
- Anchor and mooring arrangement
- Window and portlight arrangement
004
Structural development

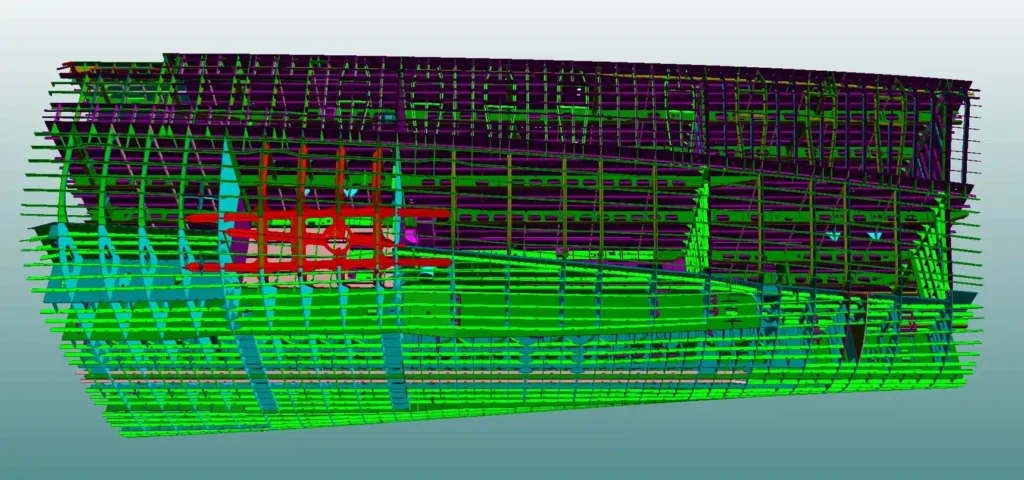

STRUCTURAL 3D MODEL
With the outcome of the calculations and the construction plan we can generate a 3D structural model in Cadmatic or Rhinoceros. Also taking into account the integration of large equipment. We cover, among others, sailing and power boats, monohulls and multihulls for a specific design category for small crafts, or super yachts applying Class rules.
